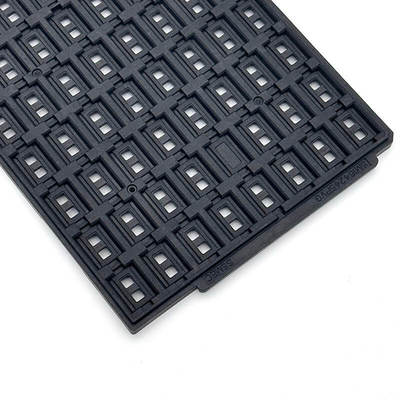

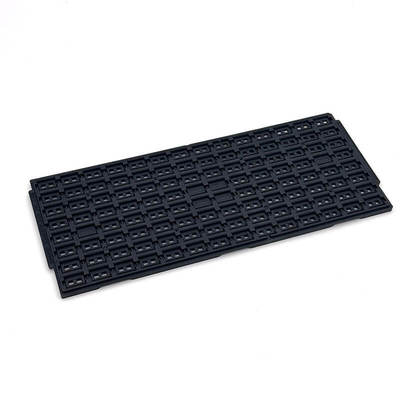

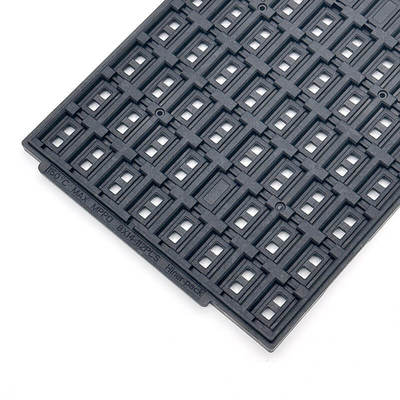

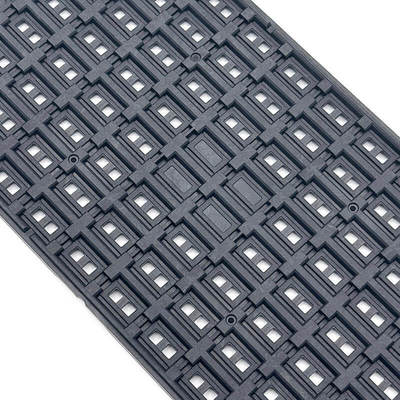

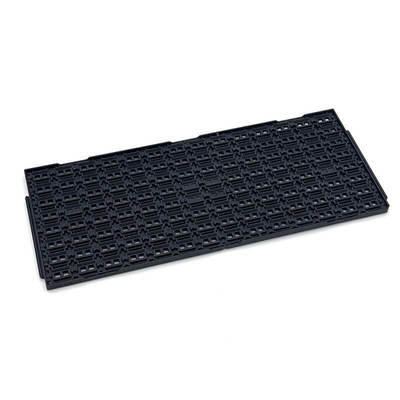

Injection Moulding JEDEC Matrix Tray For Fast Production And Standardized IC Component Handling

Name: Injection Moulding JEDEC Matrix Tray For Fast Production And Standardized IC Component Handling
Brand: Shenzhen Hiner Technology Co., Ltd.
SKU: HN24120
Price: 1.35 USD
Availability: InStock

Marchio:	Hiner-pack
Numero di modello:	HN24120
MOQ:	500pcs
prezzo:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Condizioni di pagamento:	100% Prepayment
Capacità di approvvigionamento:	2000PCS/Day

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen China

Certificazione:

RoHS、ISO

Matrice:

8*18 = 144pcs

Incoterms:

EXW, FOB, CIF, DDU, DDP

Proprietà:

ESD, non ESD

Materiale:

MPPO

Antistatico:

SÌ

Metodo di stampaggio:

Stampaggio a iniezione

Impilabile:

SÌ

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Evidenziare:

Injection Moulding JEDEC Matrix Tray

Fast Production JEDEC Tray

MPPO Material Matrix Tray

Descrizione del prodotto

Anti-Static Injection Moulding for Output and Fast Production

Product Description

JEDEC (Joint Electronic Device Engineering Council) - www.jedec.org - is responsible for creating open standards in the microelectronics industry. These standards ensure product interoperability, benefiting both the industry and consumers by reducing product development time and costs while increasing efficiency and productivity. JEDEC trays all adhere to the same size, standardized outline, and required features.

Placing parts in a JEDEC tray guarantees that your components can be easily processed in industry-standard automation equipment, including pick and place machines, inspection tools, laser marking devices, testing equipment, and dispensing tools. It is simple to integrate commercially available JEDEC tray feeders into custom process machines.

The maximum baking temperature is clearly marked on JEDEC trays. Exceeding this specified temperature during baking can lead to alterations in the tray's dimensions and potentially harm the contents. The tray's maximum temperature rating is determined by the type of molding compound utilized during manufacturing.

Features

JEDEC trays are custom designed and manufactured, often device and manufacturer specific
Component footprint for PCB layout is more tightly controlled than packaging
Off-the-shelf options available for high-demand custom trays
Open-tooled custom molds available with minimum quantity requirements

Technical Parameters

Parameter	Value
Brand	Hiner-pack
Outline Line Size	322.6x135.9x7.62mm
Model	HN24120
Cavity Size	15.910.32.6mm
Material	MPPO
Matrix QTY	8*14=112PCS
Package Type	IC Component
Flatness	MAX 0.76mm
Color	Black
Resistance	1.0x10e4-1.0x10e11Ω
Certificate	RoHS, IOS

Applications

Packaging: JEDEC trays function as containers with stacking features for efficient storage.

Transportation & Storage: Ideal for safe transport of components locally or internationally.

Protection: Provides mechanical and electrostatic discharge (ESD) protection.

Standardization: Offers compatibility with most semiconductor and PC board manufacturing equipment.
