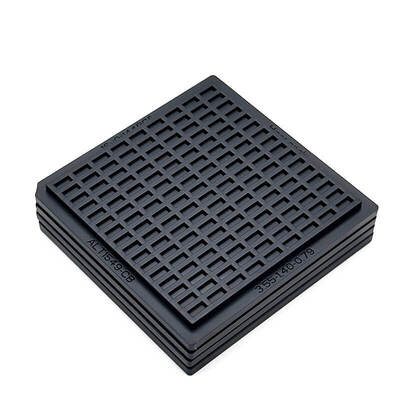

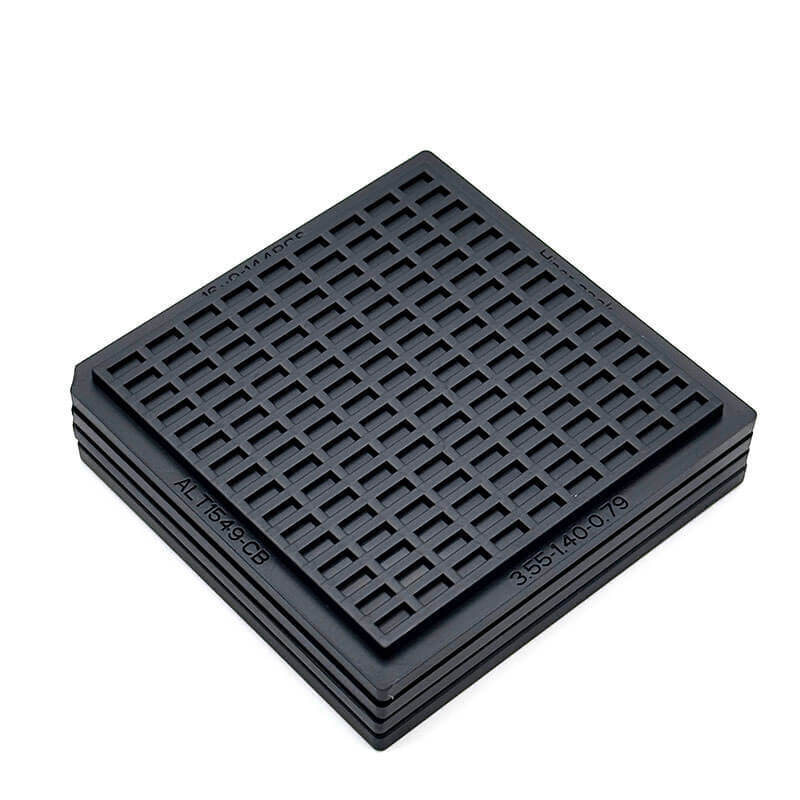

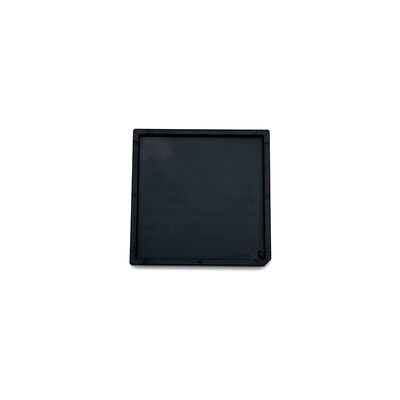

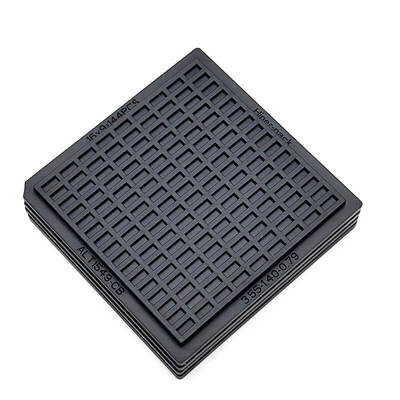

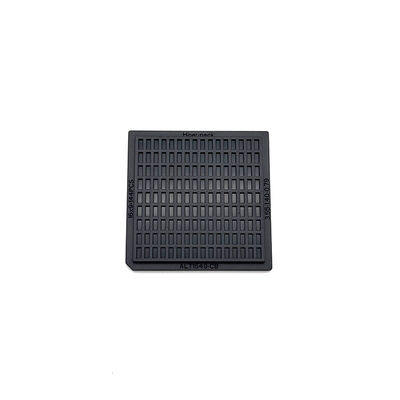

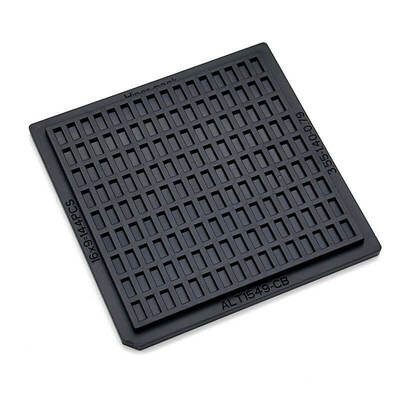

Cleanroom Waffle Pack IC Trays for Contamination Control

Marchio:	Hiner-pack
Numero di modello:	HN24141
MOQ:	500 PZ
prezzo:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Condizioni di pagamento:	T/T
Capacità di approvvigionamento:	2000 pezzi/giorno

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

ROHS, ISO

Tray Weight:

Varia, in genere fino a 500 grammi per cavità

Colore:

Solitamente nero o grigio scuro per la protezione ESD

Garanzia di qualità:

Garanzia di consegna, qualità affidabile

Dimensione della cavità:

3,55x1,40x0,79 mm

Incoterms:

EXW, FOB, CIF, DDU, DDP

Tipo di muffa:

Iniezione

Riutilizzabile:

SÌ

Forma del vassoio:

Rettangolare

Classe pulita:

Pulizia generale ed ultrasonica

Tipo IC:

BGA,QFP,QFN,LGA,PGA

Livello di imballaggio:

Pacchetto di trasporto

Deformazione:

Deformazione MAX 0,2 mm

Capacità:

16x9=144 PZ

Imballaggi particolari:

cartone, pallet

Capacità di alimentazione:

2000 pezzi/giorno

Descrizione del prodotto

Cleanroom Waffle Pack IC Trays for Contamination Control

Cleanroom Waffle Pack IC Trays are professional semiconductor packaging carriers designed for strict cleanroom production environments. Compliant with industry cleanroom-grade standards, these waffle pack trays provide reliable contamination control performance, and fully meet the safe handling requirements for delicate fine pitch IC chips.

Adopting standardized JEDEC grid structure, Cleanroom Waffle Pack IC Trays feature precise slot design and stable anti-pollution performance. They effectively isolate dust and particulate pollution damage, perfectly protect precision semiconductor chips from scratch and contamination during manufacturing operations.

Cleanroom Waffle Pack IC Trays deliver stable and durable chip loading performance. They are widely suitable for daily IC packaging, storage, transportation and testing workflows, keeping sensitive semiconductor chips clean, intact and stable in the whole industrial chain.

Key Features/ Benefits

Support small batch production in the first batch.
Effective IC Contamination Control
Suitable for Delicate Fine Pitch ICs
More than 12 years of export experience.
Safe Stable Semiconductor Handling
The factory has ISO certification, and the products comply with the RoHS standard.

Specifications

Brand		Hiner-pack
Model		HN24141
Material		MPPO
Color		Usually black or dark gray for ESD protection
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.7×50.7×7.4 mm
Cavity Size		3.55x1.40x0.79 mm
Matrix QTY		16x9=144 PCS
Warpage		MAX 0.2mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Cleanroom-grade Waffle Pack IC chip trays provide comprehensive reliable protection for integrated circuits throughout semiconductor manufacturing, packaging, inspection, testing, transportation and storage processes.

Featuring excellent contamination control performance, the trays perfectly protect ESD-sensitive fine pitch semiconductor chip devices. They are widely applied to fine pitch IC packaging (QFN, BGA, CSP), automated pick-and-place equipment, semiconductor inspection & testing operations, as well as daily IC logistics turnover and inventory management.

Customized Services

Our cleanroom-grade Waffle Pack Chip Trays support full customization of cavity dimensions and layout arrangements. Made of cleanroom-grade dust-free anti-static material, the trays feature a stable stackable structure, which effectively prevents contamination and damage to chips during transportation.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
